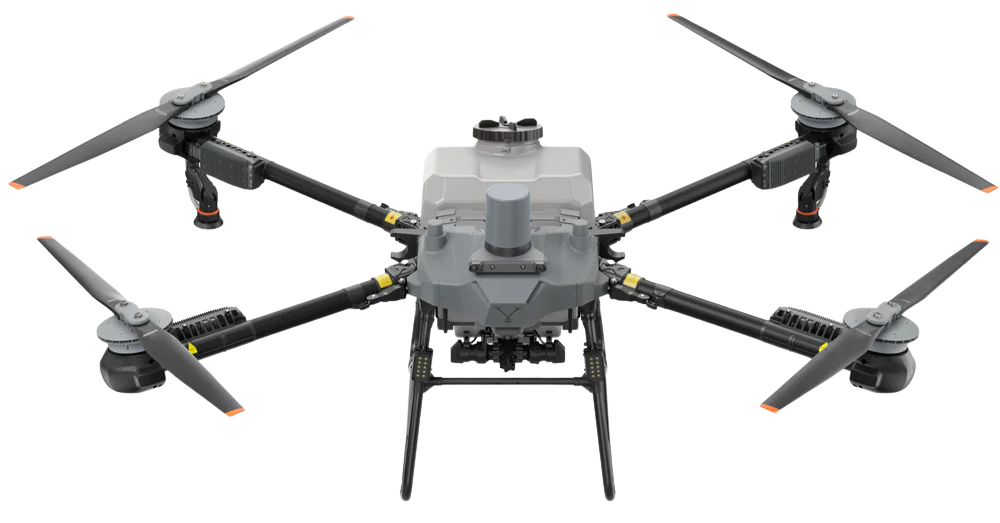

T60X Spray Drone
Transforming the Future of Farming
Highly efficient and durable, the T60X spray drone combines size, strength and speed that deliver unmatched spraying and spreading capabilities
Great fit for:
- Precise in-field spot coverage
- Whole field application
- Granular fertilizer application
- Cover crop seeding
Increased Efficiency:
- Whole field - Up to 55 acres per hour at 2 GPA
- Up to 1.5 tons of granular product per hour
- Increase liquid tank capacity to 15.9 gal and add 2 extra nozzles
- Operate continuously with 3 batteries and a generator on-site
How to Start Flying Your T60X Spray Drone
Step 1
Get a Quote
Click on "Get A Quote Today" below and we'll send you a same-day, custom quote according to your needs.
Step 2
Get an Invoice
After we receive your payment we'll ship the drone anywhere in the US for free.
Step 3
Get Legal
We'll help you get all the required licenses from the FAA and from your State Pesticide Department.
Step 4
Get Trained
After getting all your licenses and getting trained by us you're ready to start flying.
Drone For the Agriculture Industry
The T60X drone brings unparalleled performance while maintaining precision and ease of use.
INTELLIGENT BATTERIES
40,000 mAh batteries for longer operations.
ROTARY NOZZLES
Up to 4 rotary nozzles for orchard applications and fine droplets (20-320um).
LOW MAINTENANCE
Designed for minimum maintenance. Any gear can be easily repaired at a customers convenience.
OBSTACLE AVOIDANCE
Smoothly bypass tress, irrigation pivots, electric poles and more.
FPV CAMERA
Low-light, full color FPV camera for enhanced safety and visibility
FOLDABLE DESIGN
Its foldable design decreases volume by up to 70%, fitting on the back of any standard truck and making it easy to transport.
T60X vs T50
T60X
- 13.2 gallon spray tank upgradable to 15.9 gallons
- 21.1 gallon spreader tank (132lbs max load)
- 36 ft Swath (spray width)
- State-of-the-art tri-camera design
- Up to 4 centrifugal nozzles
- Max flow of 7.4 gal/min
- Max speed 45ft/s
- Finer droplets (20-320um)
- 7-inch screen remote control
- Mapping capabilities: Built in
- Operates continuously with 3 batteries, 1 charger and a generator on site

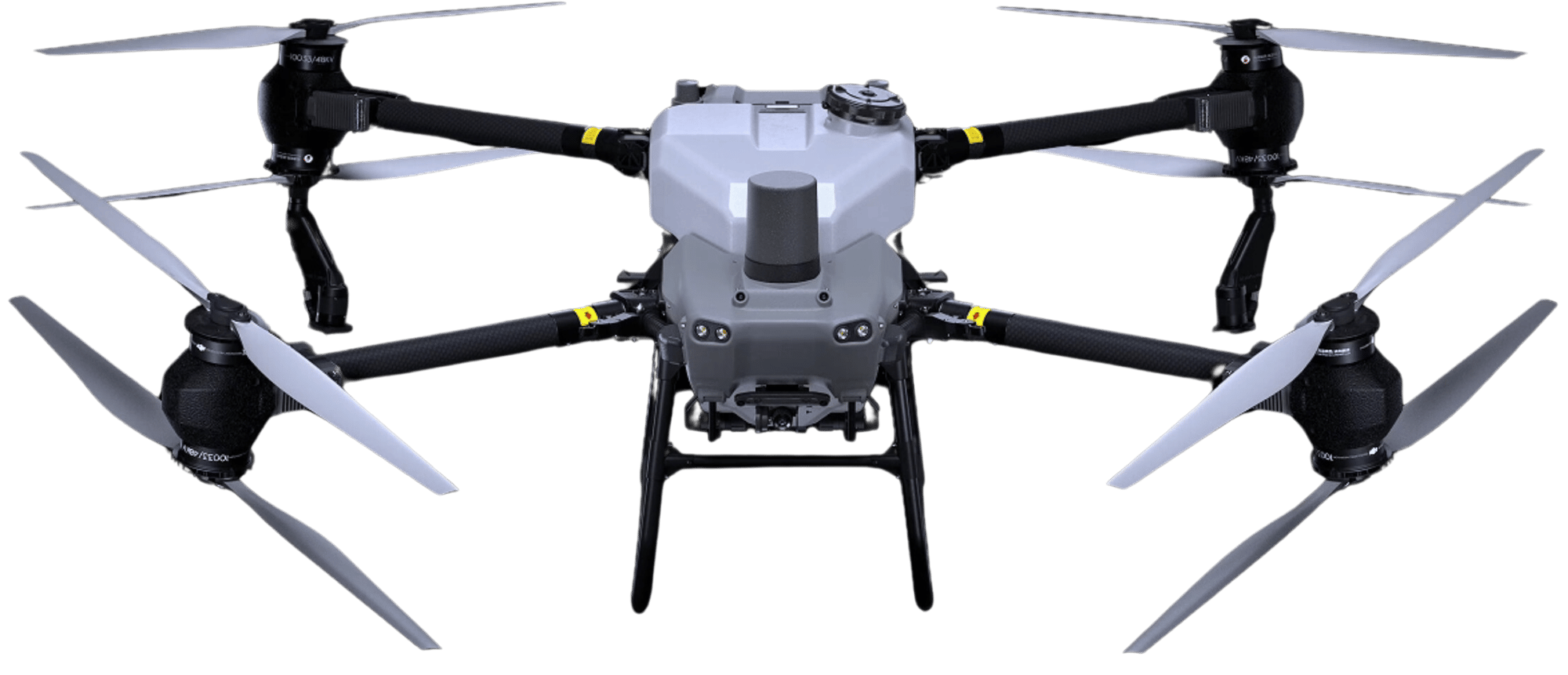

T50
- 10.5 gallon spray tank (not upgradable)
- 19.8 gallon spreader tank (110lbs max load)
- 36 ft Swath (spray width)
- 12 megapixel camera on a gimble
- Up to 4 centrifugal nozzles
- Max flow of 6.32 gal/min
- Max speed 32ft/s
- Fine droplets (50-500um)
- 7-inch screen remote control
- Mapping capabilities: Built in
- Operates continuously with 3 batteries, 1 charger and a generator on site

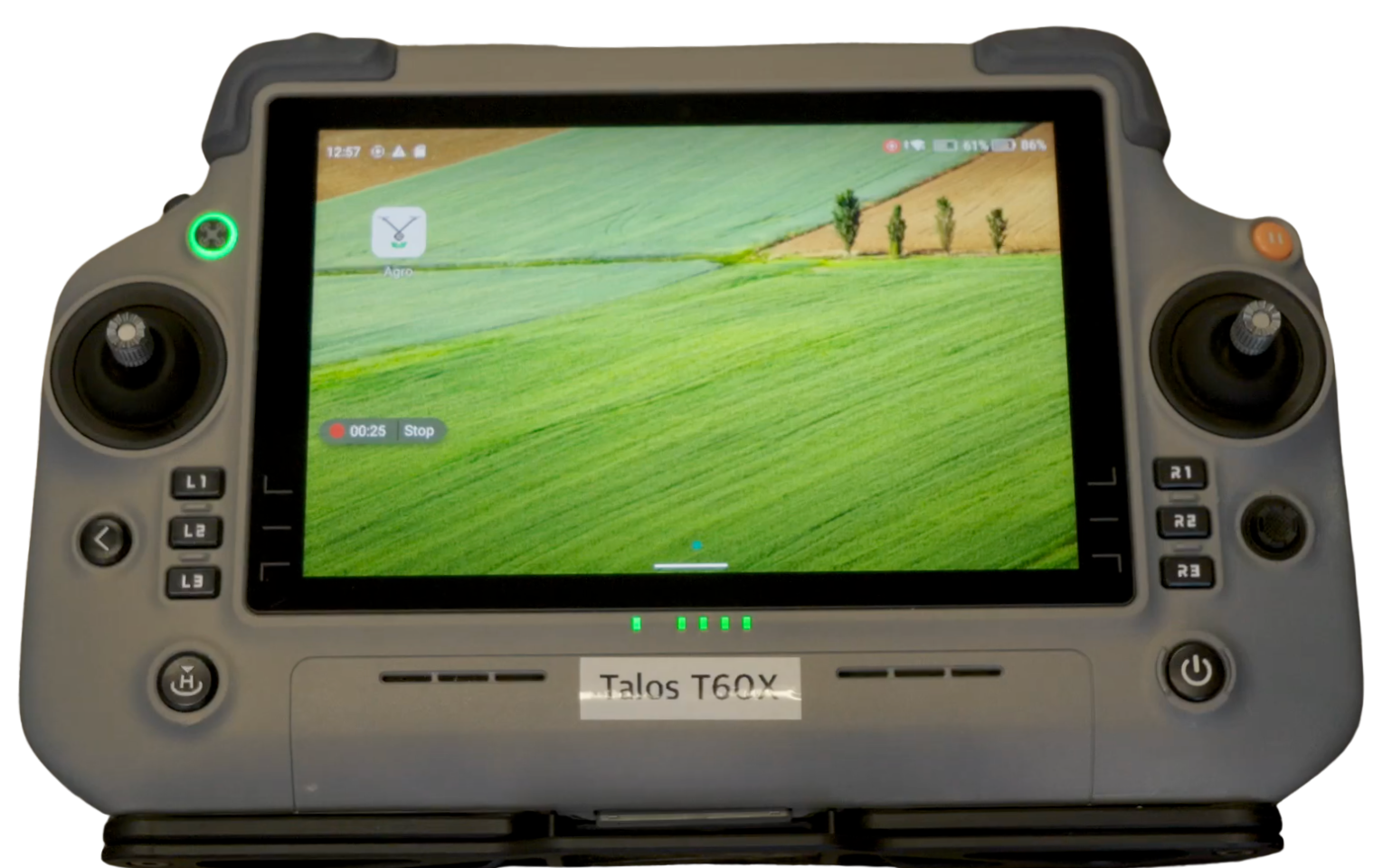

Intuitive Remote Interface
The T60X Spray Drone comes with a 7-inch touch screen remote designed for ease of use and intuitive commands. Spraying, spreading and mapping operations can be setup with the remote without additional hardware.

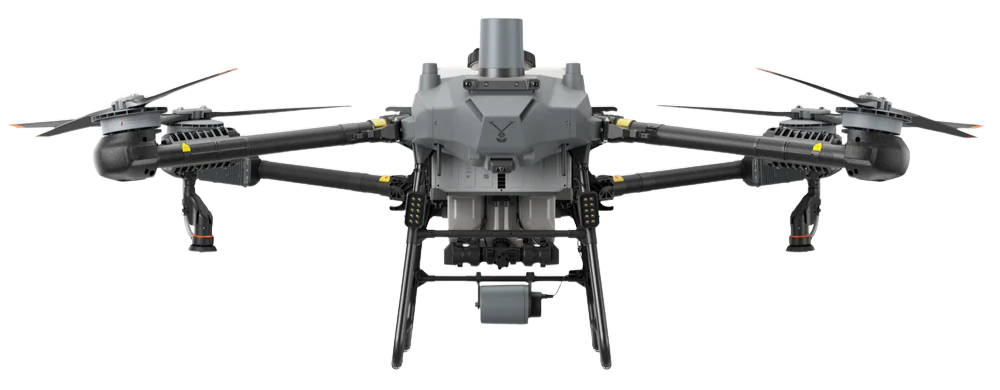

T60X Specs
HIGH PERFORMANCE POWER
-
Up to 55 acres/hour at 2 GPA
-
Max Flight Speed: 45ft/s
-
Equipped with a larger motor and high-strength blades for maximum durability and power
-
7" RC display allows faster and smoother mapping
-
Ability to operate continuously with 3 batteries, 1 charger and a generator on site
SPREADING SYSTEM
-
21.1-gallon granular tank designed to hold 132 lbs of granular material
-
Max 26 ft swath width for efficient fertilizer distribution
-
Equipped with 3 Auger conveyors for smooth and consistent spreading
SPRAYING SYSTEM
-
13.2-gallon spraying tank, upgradable to 15.9 gallons
-
Max 36-foot swath width for wide coverage
-
Powerful flow rate: 4.8 gal/min or 7.4 gal/min with 4 nozzles
SAFETY & NAVIGATION
-
State-of-the-art tri-camera design for superior navigation
-
Low-light, full-color first-person view for enhanced safety and reliability
-
Obstacle avoidance: smoothly bypass trees, irrigation pivots, electric poles and more
T60X Spray Drone Cost per Acre and Perfomance Comparison
| T60X | Air Tractor AT-502B | Robinson R44 | |
| Cost per acre | $1.5-$2.5/acre | $3.23/acre | $3.27/acre |
| Capacity | 13.2 gallons | 500 gallons | 60 gallons |
| Productivity | 55 acres/hr | 255 acres/hr | 193 acres/hr |
| Autonomous Spraying | Yes | No | No |
| Operating Costs (including pilot) | $100-$150/hr | $825/hr | $630/hr |
| Purchase Price | Get Quote | $1,200,000 | $750,000 |
AckerSpray's T60X Fly Ready Package
- Fully assembled T60X Drone w/ Liquid Tank
- 1x T60X Remote Control
- 3x T60X Intelligent Flight Battery
- 1x T60X Battery Cooling Station
- 1x T60X C10000 Charger
- 1x T60X Intelligent Battery Cable
- 2x Extra T60X Remote Batteries
- 1x T60X Remote Battery charger
- 1x T60X Remote Battery Charger Hub
- AckerSpray's Hands-on, Comprehensive Training
- AckerSpray's UAV Compliance Consulting package
- 14000W All-In-One Generator and Charger
- T60X Spreading System
- T60X Orchard Kit (15.9 Gal. Liquid Tank + 2 Extra nozzles)
Frequently Asked Questions
How many acres can it spray in an hour?
The T60X can spray up to 55 acres/hr at a 2 gallons per acre application rate.
What about dry spreading?
The T60X has a 21.1 gal dry tank designed to hold up to 132 lbs and it has a max spreading swath width of 26 ft.
How many refills are necessary per hour?
At an application rate of 2 gallons per acre, you can expect 6-8 refills per hour.
What is the swath width when spraying with the T60X Spray Drone?
The T60X has a max swath width of 36 ft.
How large is the tank on the T60X?
The T60X comes with a 13.2 gal spray tank that is upgradable to 15.9 gal. It's dry spreading tank can carry 132lbs at a 21.1 gal volume.
How long does the batteries last?
Batteries will last about 8-10 minutes. We recommend swapping batteries every time the drone comes back for a refill. 3 batteries ensure you have continuous operations.
What kind of generator do I need for operations?
Any 14,000 running watt generator should be enough to get started with 50 amp plugs. Our recommendation is the T60X 14000W All-In-One Generator and Charger or similar.
What kind of licenses do I need to operate a sprayer drone?
You'll need:
- FAA Part 107 - Drone Pilot's License
- FAA Part 137 - Aerial Applicator's License
- Section 44807 Exemption - Exemption to operate drones over 55lbs.
- State Applicator's License (may use the same one you may already have)
- FAA 3rd Class Medical (for night flying)
AckerSpray's compliance manager can help you obtain all of these licenses with our Done-For-Your UAV Compliance Services.
Can I operate multiple drones at the same time?
Yes, you can. However, to do so you'll need to get a permission from the FAA allowing you to swarm (Swarm exemption). Our compliance manager can petition for this and other exemptions for you.
How difficult is it to operate theT60X Spray Drone?
The T60X spray drone is fully autonomous, meaning the operator only sets flight parameters and the drones fly and spray on their own. Most customers of ours learn how to operate in just one day with our training class (see below).
What comprises the training class?
We offer comprehensive, hands-on operations training, designed to get you comfortable and confident flying the drone in a full-day of instruction. Our trainers will travel to you, anywhere in the US.
How accurate is the GPS system?
The T60X spray drone use over 20 different satellite sources to ensure inch-level accuracy.
How to obstacles (trees, poles, etc) affect the operation of the T60X Drone?
T60X's obstacle avoidance feature is powered by its large radars on the front and back, ensuring bypassing of trees, irrigation pivots, electric poles and more with ease.
Where can I get parts or get my drone serviced?
AckerSpray offers overnighting shipping of spare parts to anywhere in the US. Most repairs can be done by the customer, though you can also have us repair your drone for you.
What comes with the package?
The package comes with everything you need to get started (please, see the package items above). You can also purchase additional accessories, depending on your needs.
How much does the package cost?
Request a quote below to get full pricing details for your desired package.
