Lyno Dynamics LD220

A Heavy Duty drone designed for large-scale operations.









Get a FREE Quote Today

Versatile, yet Powerful

Designed for maximum utility and steadfast reliability, the LD220 integrates spraying, spreading, and lifting into one seamless workflow, ensuring peak performance exactly where it’s needed.

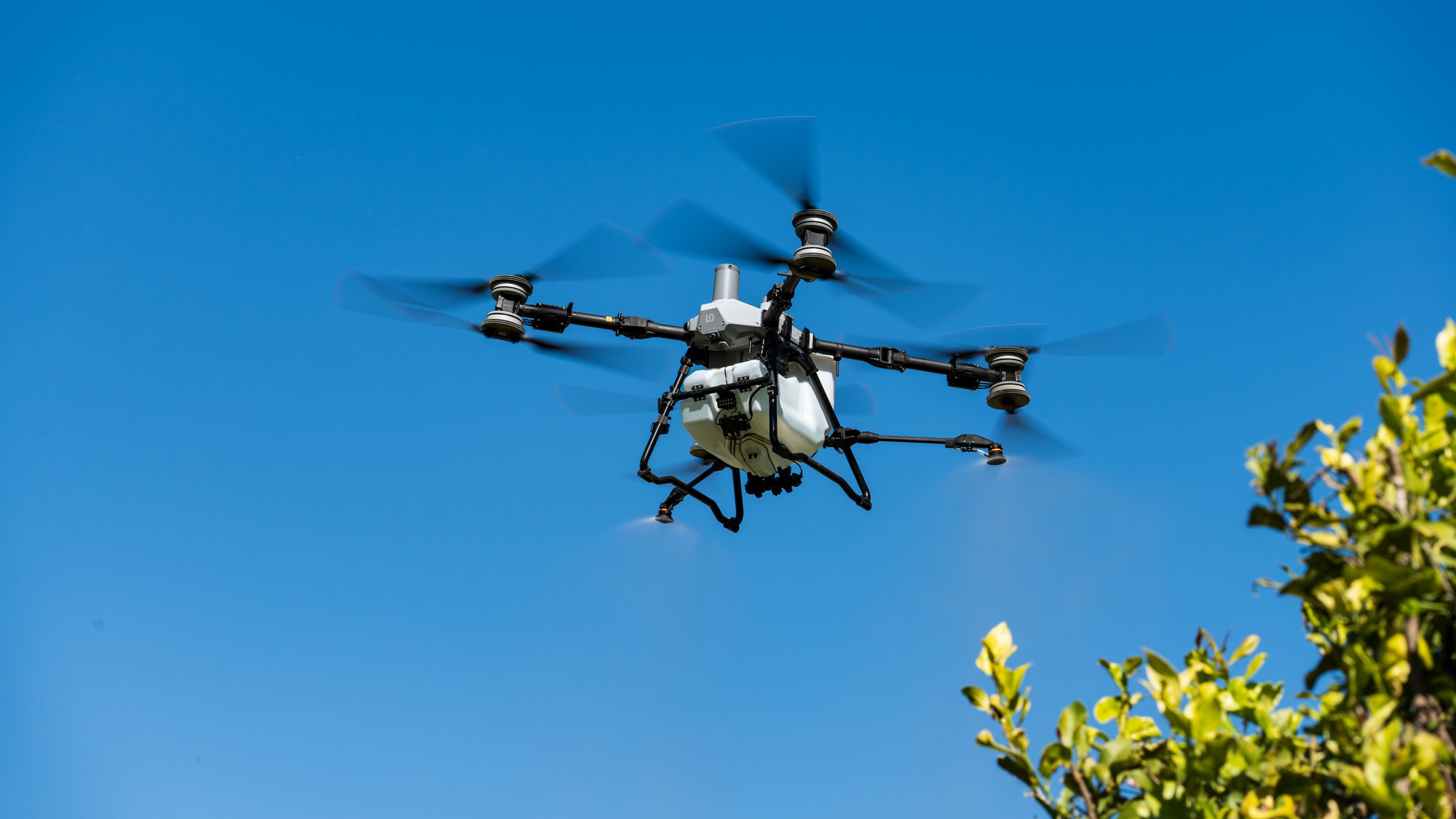

LD220 FLYING 6

Whole Field Application

Spray up to 70 acres/hr.

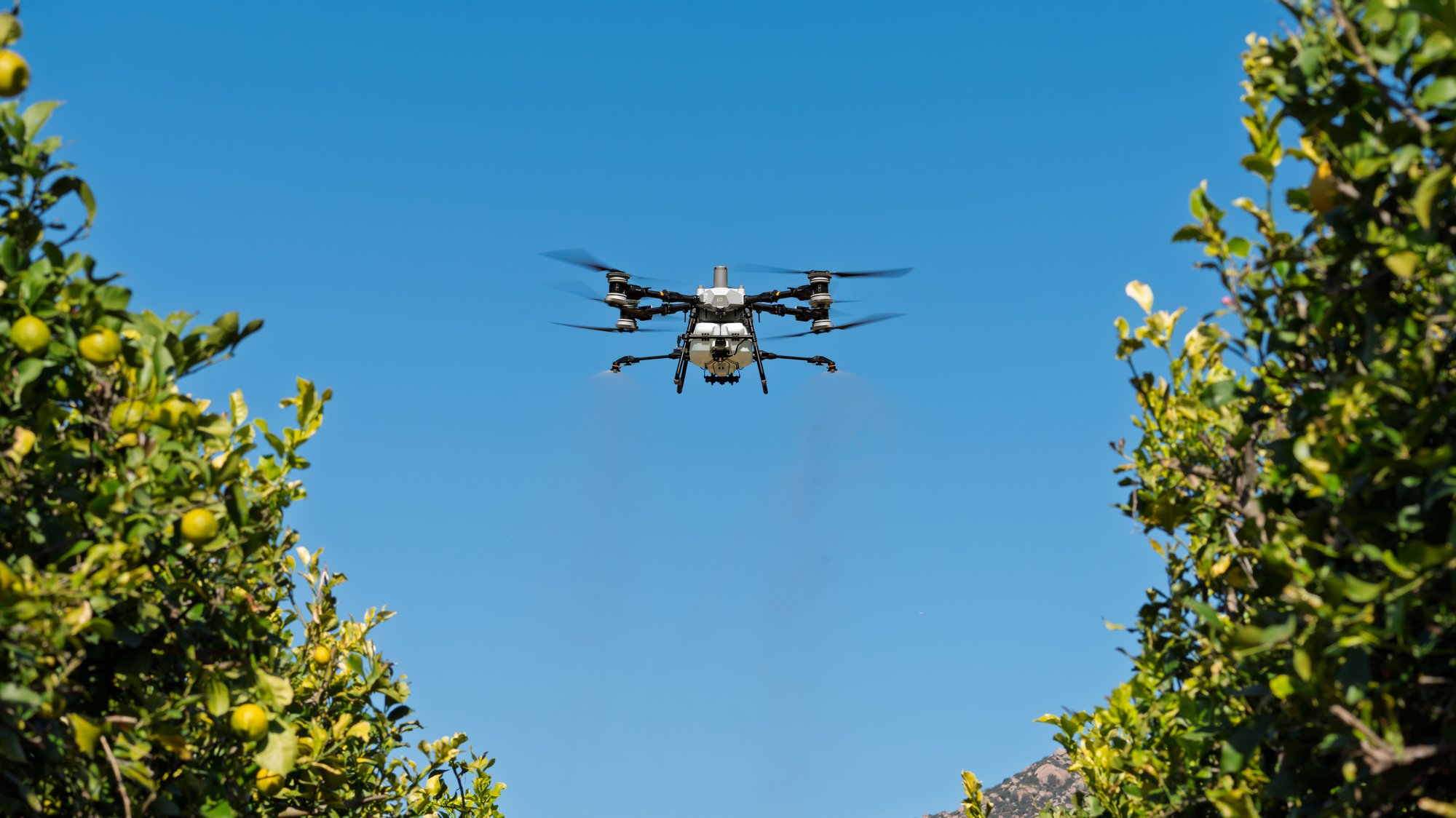

LD220 FLYING 5

Orchard Spraying

Add an additional 2 nozzles with the Mist Nozzle package for efficient fruit tree and orchard spraying.

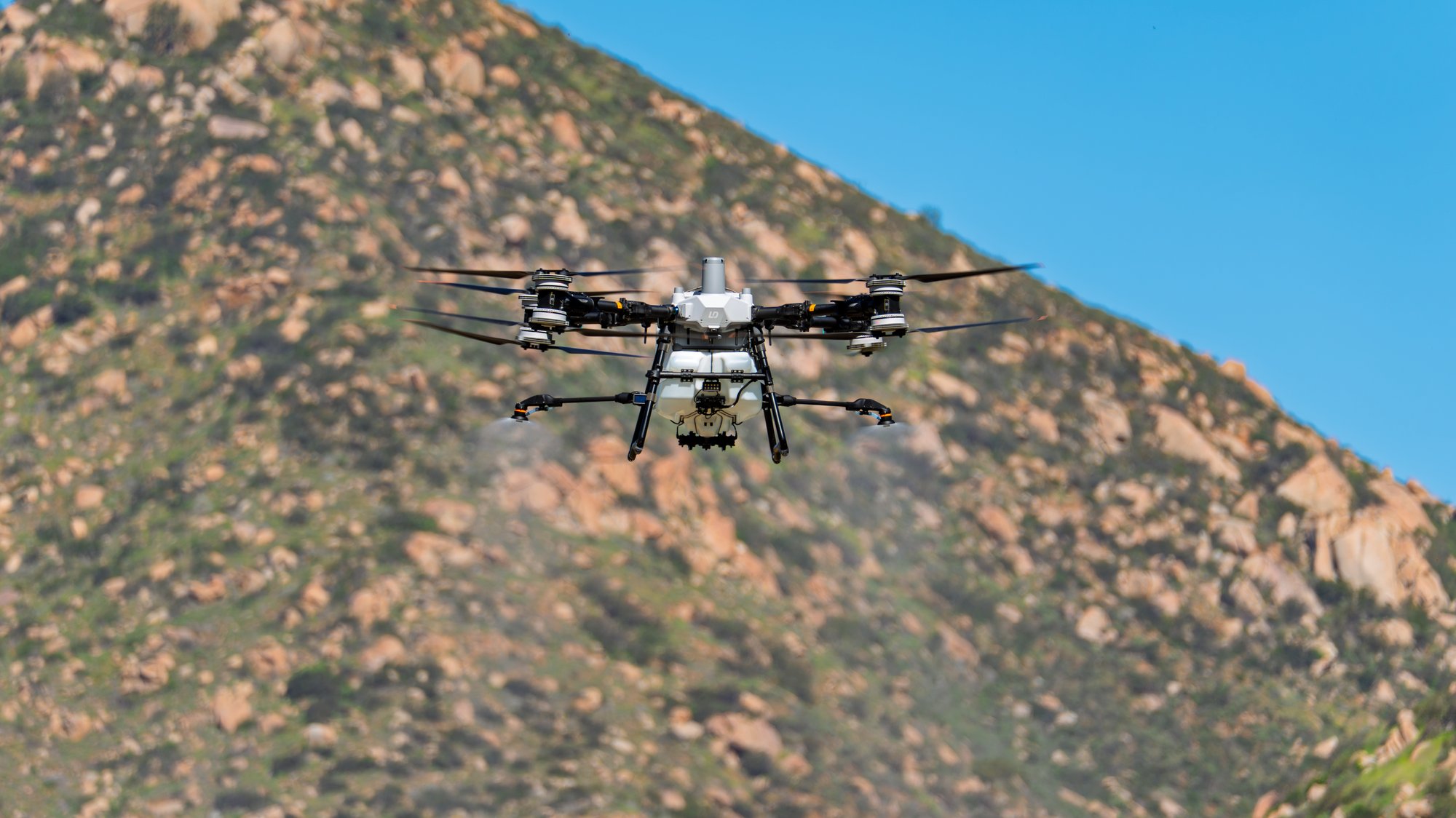

LD220 FLYING 7

Granular Spreading

Spread seeds or fertilizer with a payload capacity of 220 lbs

The 220's lift system kit transform it into a full transport solution, enabling it to carry diversified materials at up to 220lbs.

lifting-fruits-2

Fruits

lifting-solar

Solar Panels

lifting-materials

Building Materials

How to Start Flying Your Lyno Dynamics LD220

Step 1

Get a Quote

Click on "Get A Quote Today" below and we'll send you a same-day, custom quote according to your needs.

Step 2

Get an Invoice

After you decide on your drone, accessories and services, call us to get you an invoice.

Step 3

Get Trained

Get trained by us and learn how to operate your drone efficiently and effectively.

Step 4

Get Legal

After our compliance manager helps you in obtaining all the required licenses for operation you're ready to start flying.

LD220 vs T60x

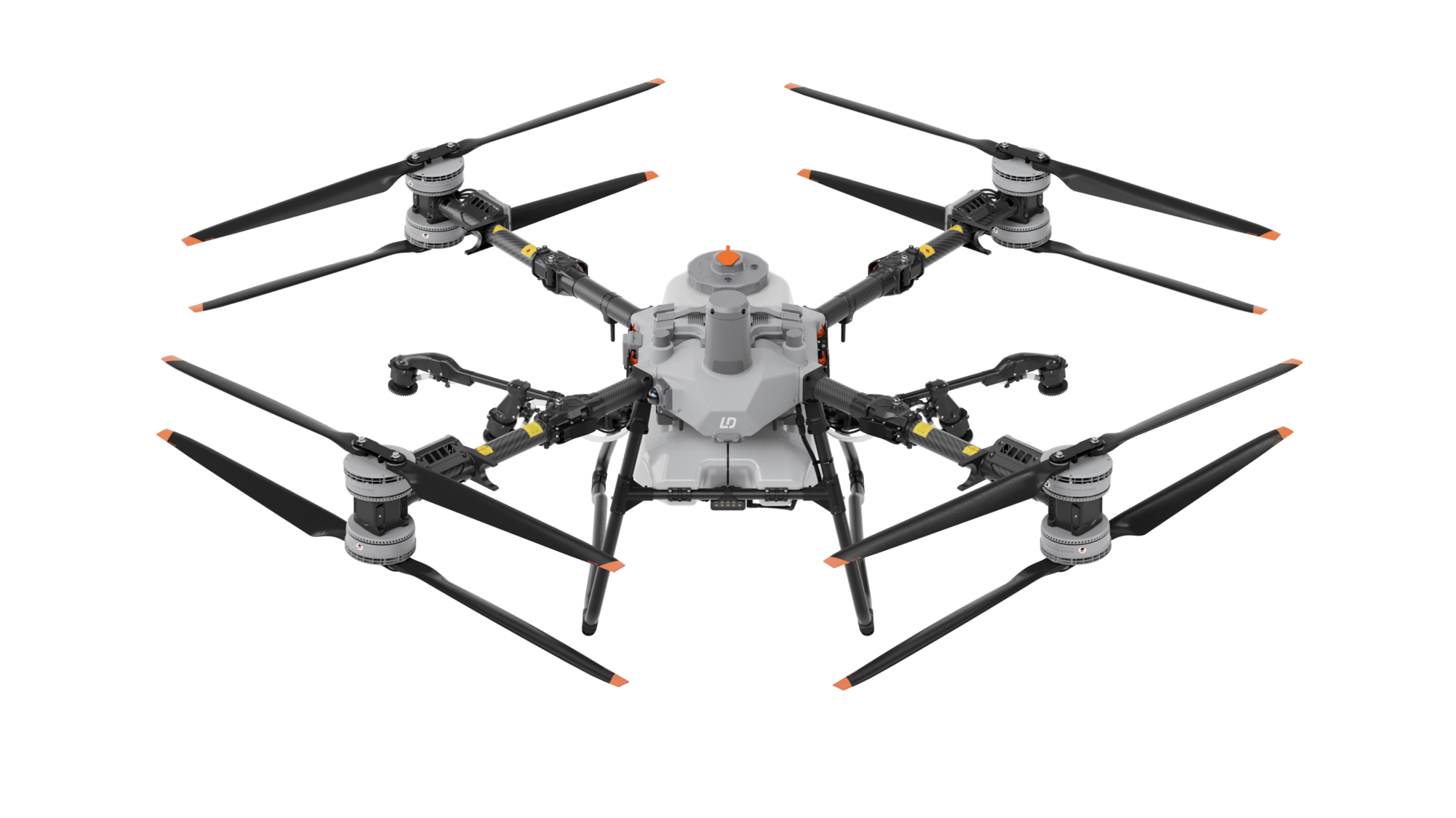

LD220 Quad Spray-Static-2

LD220

- 26.4 gallon spray tank

- 39.6 gallon spreader tank (220 lbs max load)

- LiDAR enabled terrain following

- 42 ft Swath (spray width)

- Quad-vision system with a FPV low light, full-color camera

- Up to 4 centrifugal nozzles

- Max flow of 10.6 gal/min

- IPX6 water and dust resistance

- 7-inch screen remote control with 16% increase in brightness

- Mapping capabilities: Built in

- Operates continuously with 3 batteries, 1 charger and a generator on site

4_1000x - Edited

T60X

- 13.2 gallon spray tank (upgradable to 15.9 gal)

- 132 lbs capacity spreader tank

- Standard terrain following

- 36 ft Swath (spray width)

- 12-megapixel adjustable camera

- Up to 4 centrifugal nozzles

- Max flow of 7.4 gal/min

- IPX6 water and dust resistance

- 7-inch screen remote control

- Mapping capabilities: Built in

- Operates continuously with 3 batteries, 1 charger and a generator on site

LD220 Specs

SPRAYING SYSTEM
  • Up to 70 acres/hour at 2 GPA
  • 26.4-gallon liquid tank
  • 42ft swath width
  • 7.3 gal/min flow rate
  • 10.6 gal/min max flow rate with 4 nozzles
  • 44.7 mi/hr max flight speed
SPREDING SYSTEM
  • 39.6-gallon spreader tank
  • 220 lbs max payload
  • Ultra-high flow rate of 881 lbs/min
  • 33ft effective swath width
  • 44.7 mi/hr max flight speed
TRANSPORT SYSTEM
  • 220 lbs max payload
  • Auto balance control
  • Real-time weight monitoring
  • Optional dual-battery setup with lifting capacity of 176.4 lbs for long endurance flights
  • Heat and cut the cable in case cargo gets trapped or tangled
SAFETY SYSTEM
  • Real-time LiDAR provides clearer and more intuitive obstacle detection compared to FPV
  • Intelligent obstacle detection and bypassing: the system can detect various obstacle types and it intelligently selects the optimal path, ensuring smooth and seamless obstacle bypassing.
  • Automatic obstacle position memory enables more precise bypassing during subsequent flights
  • The system also support Terrain following of slopes up to 90° without prior mapping

AckerSpray's LD220 Flagship Package

Comes with the D14000iE Multifunctional Inverter Generator

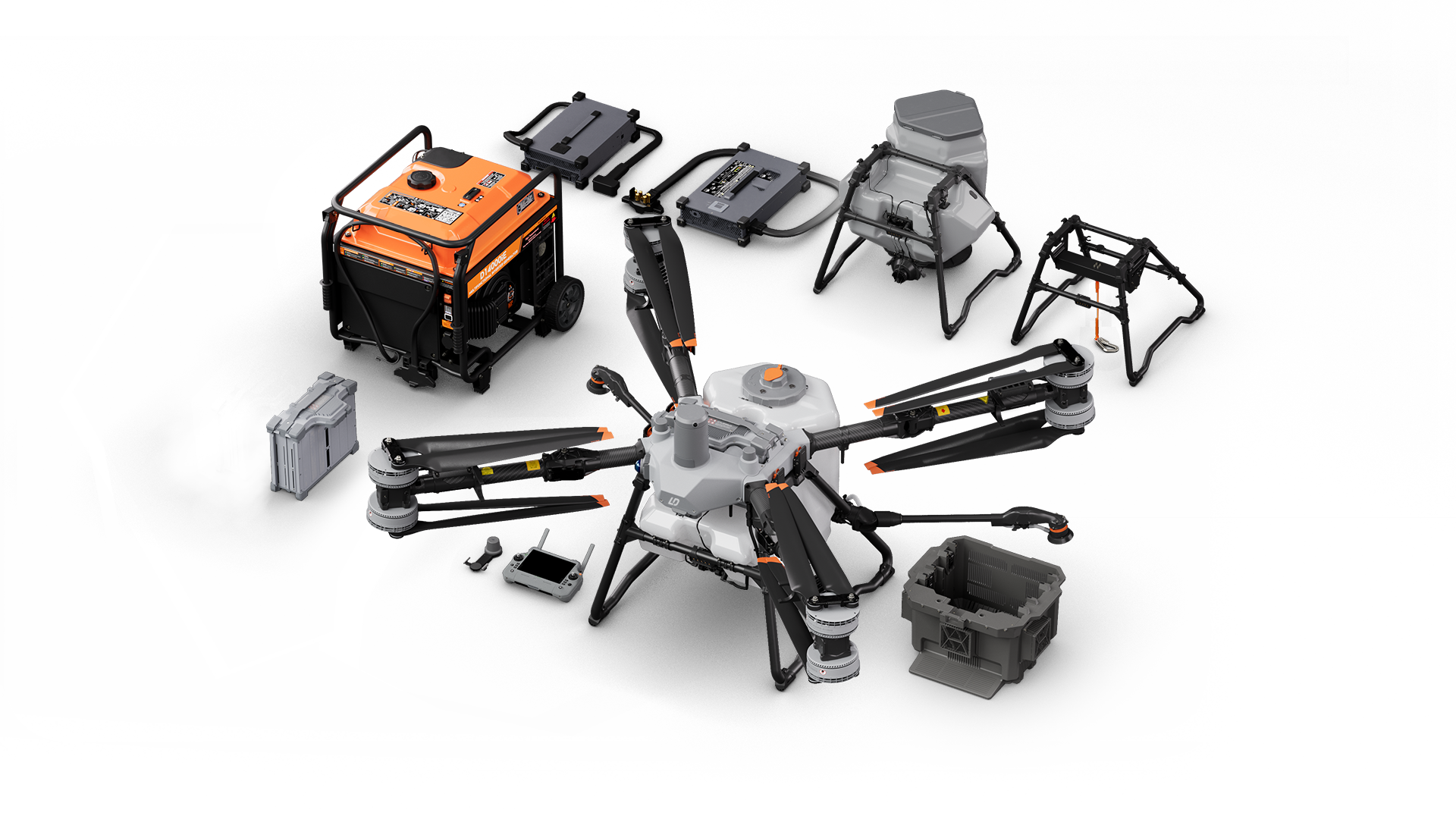

LD220 Set
  • LD220 Intelligent Airframe
  • 1x LD220 Spraying System w/ Air-Cooled Heat Sink
  • 3x LD220 Intelligent Flight Battery
  • 1x D14000iE Multifunctional Inverter Generator

  • 2x Extra WB37 Remote Batteries
  • 1x 60W Remote Battery charger
  • 1x WB37 Remote Battery Charger Hub

Recommended Services

Compliance Services (1200 x 730 px)

FAA Regulations Package

Get expert guidance to obtain all of your required FAA licenses like Part 107, Part 137 and 44807 exemption.

Financing 7

Comprehensive Training

Our comprehensive, hands-on training is designed to get you comfortable and confident in operating the drone through a full day of 1-on-1 instruction.

Recommended Accessories

dji-t100-lift-system

Winch System

Carry loads up to 220 lbs or up to 176.4 lbs for longer distances

water-mist-nozzle-system

Water Mist Nozzle Package

Expand the spray width and flow rate for orchard operations while maintaining uniform coverage

T100-Spreading System-1 - Edited

Spreading System

Get the dry spreading system to spread fertilizer or seeds. Volume is 39.6 gallons and payload capacity is 220 lbs.
